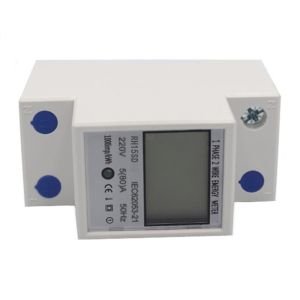

New style Mini Size DIN rail Digital panel meter multi-function energy meter

Ask Lasest Price
Brand Name :	Customized
Model Number :	RH15SD
Supply Ability :	50000 Piece/Pieces per Month
Price :	$6.00 - $7.00/pieces

Add to Cart

Product Details
Company Profile

New style Mini Size DIN rail Digital panel meter multi-function energy meter

Technical parameter

Type

Accuracy

Rated voltage

Rated current

Starting current

Insulating performance

RH15SD

Class 1.0

220V

230V

5(30)A 10(40)A

15(60)A 20(80)A

5(80)A

0.04%

Frequency AC voltage 2kv lasted 1minute,the impact voltage 6kv

Basic error

Phase balance load

0.05Ib	Cosφ=1	±1.5%
0.1Ib	Cosφ=0.5L Cosφ=0.8C	±1.5% ±1.5%
0.1Ib-Imax	Cosφ=1	±1.0%
0.2Ib-Imax	Cosφ=0.5L Cosφ=0.8C	±1.0% ±1.0%

New style Mini Size DIN rail Digital panel meter multi-function energy meter

After-sales service

Within 18 months from the date of manufacture the user complies with all of above rules. If the meter still being sealed does not conform to any technical requirements of IEC61036, or of any certification of Power Department or Measuring Department, the manufacture guarantees to repair freely or to change. New style Mini Size DIN rail Digital panel meter multi-function energy meter
